Developer Guide

Contents

• 1 Acknowledgements
• 2 Design
  • 2.1 Architecture Level
    • 2.1.1 Main Components of the Architecture
  • 2.2 Model Component
  • 2.3 API Component
  • 2.4 Storage Component
  • 2.5 UI Component
  • 2.6 Logic Component
  • 2.7 Common Component
• 3 Implementation
  • 3.1 The favourite and unfavourite command
    • 3.1.1 Design Considerations
  • 3.2 The filter command
    • 3.2.1 Design Considerations
  • 3.3 Updating Data from LTA API
    • 3.3.1 Design Considerations
    • 3.3.2 Limitations of the LTA API
  • 3.4 Updating CarparkList with JSON file from API
    • 3.4.1 Loading CarparkList from text file
    • 3.4.2 Loading CarparkList from JSON file
    • 3.4.3 Writing to text file
  • 3.5 Jansi formatting
  • 3.6 Exception Handling
• Appendix
  • Appendix A: Product scope
    • Target user profile
    • Value proposition
  • Appendix B: User Stories
  • Appendix C: Non-Functional Requirements
  • Appendix D: Glossary
  • Appendix E: Instructions for manual testing

1 Acknowledgements

Our project uses external libraries and services from:

1. Land Transport Authority DataMall API Service (link).
2. Jackson JSON Parser (link)
3. Jansi (link)

Additionally, some code was reused and modified as below by:

1. Vic Seedoubleyew (link) for capturing prints to System.out.
2. Max Strandberg (link) for the ASCII art for the greeting message.
3. patorjk.com (link) for generation of the logo tags.
4. GOXR3PLUS (link) for file regeneration from within the jar file.
5. Address Book 2 (link) as inspiration for the Parser class.

2 Design

2.1 Architecture Level

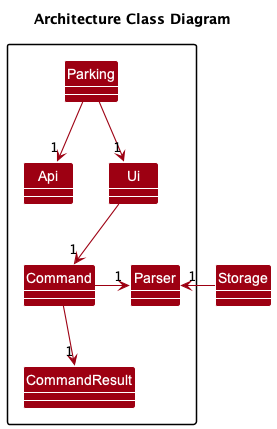

The Architecture Diagram below explains the high level design of the app.

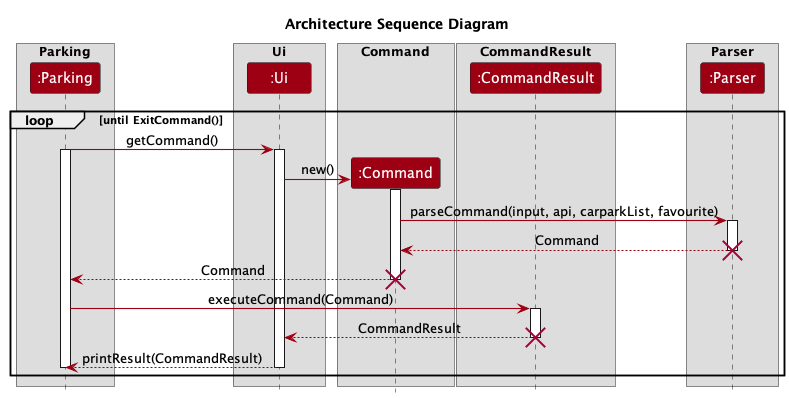

Given below is a quick overview of the main components and how they interact with one another.

2.1.1 Main Components of the Architecture

Our program flow is managed by the Parking class.

User input is passed to the Command class, which then calls the Parser to parse the user input string as a command. Each command subclass handles its own execution.

Below are the main subcomponents that Parking and the command subclass delegate work to:

• Ui: Deals with user interaction, such as reading input and printing output.
• CommandResult: Returns the results of the command instructed.
• Parser: Takes in the user input string to determine what is the command the user has instructed the program to do.

2.2 Model Component

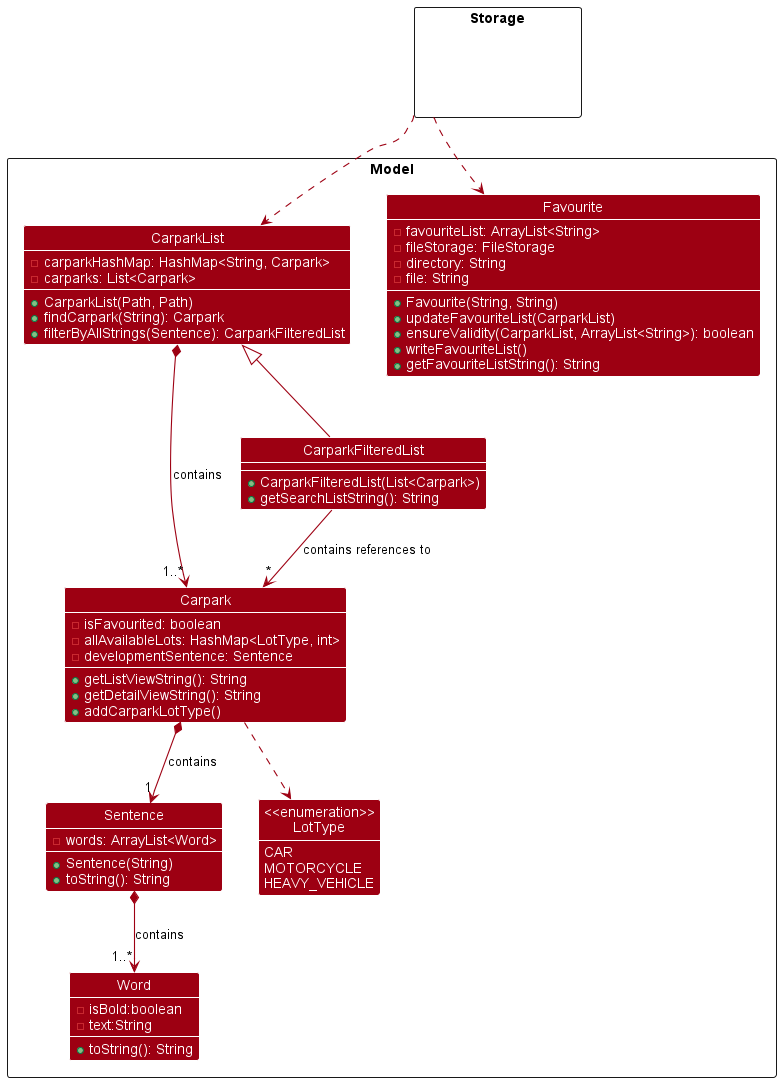

The model component consists of a CarparkList (and CarparkFilteredList) class that contains instances of Carpark, as well as the Favourite class, under the package seedu.data

This component:

• Stores the necessary information to maintain a list of “favourited” carparks in the Favourite class.
• Stores all carpark data (all Carpark objects), contained in a CarparkList object.
• Stores filtered carpark data to be used in other components (in CarparkFilteredList).
• Contains methods for selecting a Carpark object based on a unique code (for the find command) as well as filtering by a substring or set of substrings (filter command).
• Is independent of other components except the API component, which is used to generate it.
• Group objects with the same code by enum LotType (Car, Motorcycle, Heavy Vehicle) and places them in a HashMap for easy access. For example: Three Carpark objects may have the same unique carpark code as they are the same carpark, but contain available lot information for different types of lot. These three objects will be grouped under one object with the HashMap allAvailableLots containing a breakdown of lots by type.

Note: The Carpark class contain many getters, setters and annotations to be used with the jackson module. These may seem like they are unused in an IDE, but their presence is crucial for the parsing of the JSON files. Please do not remove these unless absolutely necessary.

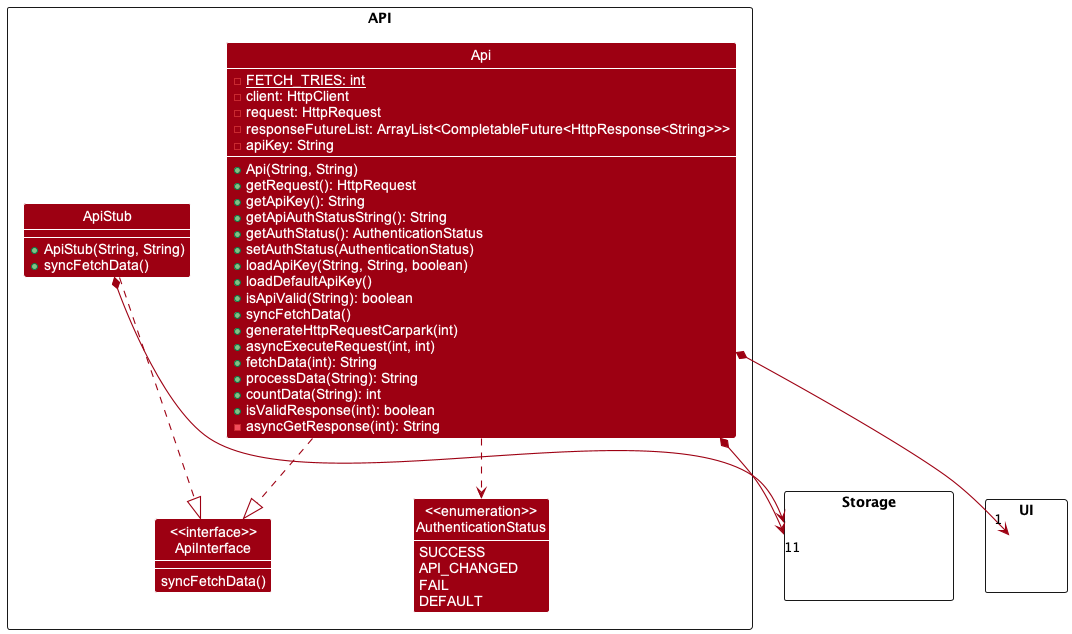

2.3 API Component

The model component consists of a Api class that supports API call to the LTA DataMall Services, under the package seedu.api.

This component:

• Focuses on communicating with an external API by using HTTP requests.
• JSON response will be stored in the local JSON file as long as the response is 200 OK and not empty.
• Only reads from the secret.txt file once and stores the API as a variable (will only read from the file if requested again).

The API component is also able to:

• Loads in key from a local file storage (in .txt format).
• Authenticate user API key. If there is no user key input in the program, default key will be loaded.
• Get API authentication status.

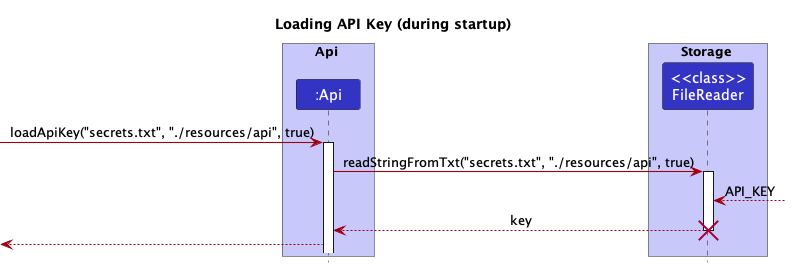

The following sequence diagram shows how the API key is loaded.

2.4 Storage Component

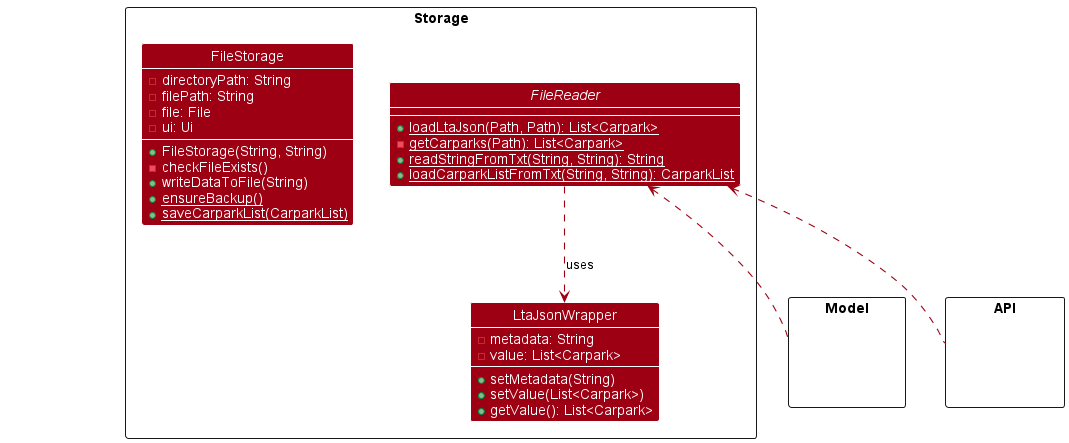

The storage component consists of a FileReader and FileWriter class in the seedu.files package. FileReader is an abstract class and only contains static methods, while FileWriter can be instantiated and is used in the API and Model components. A LtaJsonWrapper class is also present, for use with the Jackson JSON parser.

This component:

• Reads and parses JSON files into a usable format for the program (CarparkList and Carpark classes).
• Read and parse a .txt file with save data into a usable format for the program (CarparkList and Carpark classes).
• Write to a .txt containing save information for carparks that may have been edited by the user
• Regenerate files when an invalid format is detected, and ignore invalid values.

For more information on the process of loading files from JSON, please see the section 3.4 Updating CarparkList with JSON file from API.

2.5 UI Component

The user-facing parts of the program are implemented with the Ui class.

It implements the following main methods:

• println() - Prints either a String or an Ansi followed by a newline using System.out.println().
• print() - Prints either a String or an Ansi using System.out.print().
• printGreen() - Prints a String in green colour.
• printRed() - Prints a String in red colour.
• printRenderedString() - Prints a String to render.
• getLine() - Asks user for input and returns input.
• getCommand() - Asks user for a command input and returns input.
• showLogo() - Prints ASCII art of a car and parKING logo.
• printResult() - Shows the result of a command execution to the user. Includes additional formatting of the results of different commands.
• printError() - Print exception message.
• changeScanner() - Changes the scanner for the Ui object. To be used for JUnit testing.
• getSeparatorString() - Returns a separator string.

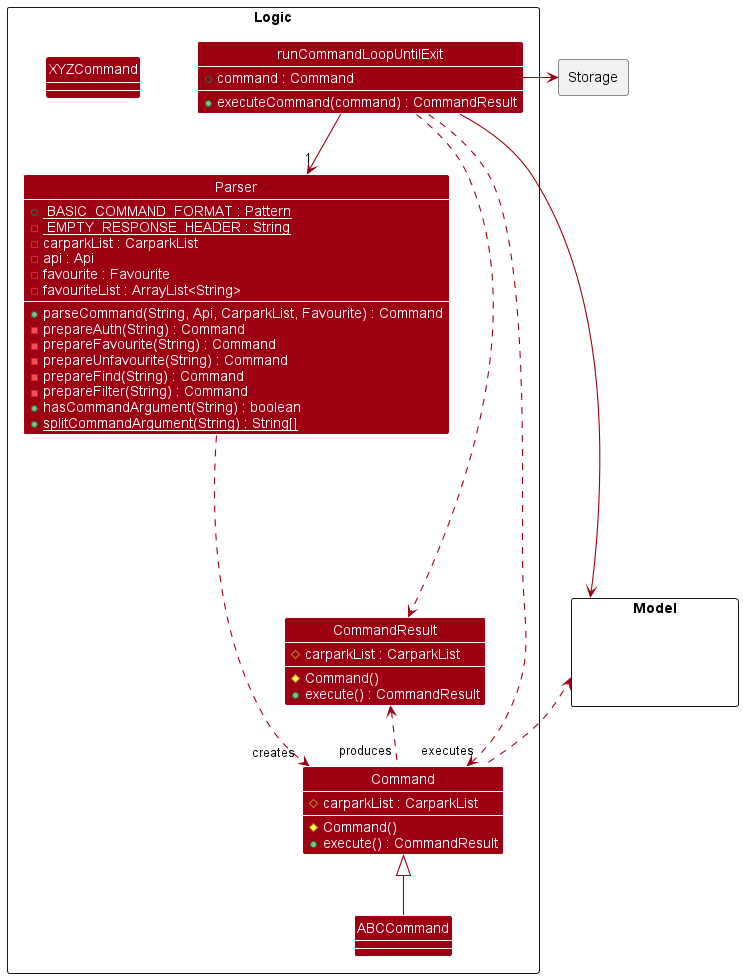

2.6 Logic Component

How the parsing works:

• When called upon to parse a user command, the Parser class creates an ABCCommandParser (ABC is a placeholder for the specific command name e.g. FindCommandParser) which uses the other classes to parse the user command and create an ABCCommand object (e.g. FindCommand), which the Parser returns back as a Command object.

• All ABCCommandParser classes (e.g. FindCommandParser, FilterCommandParser etc) inherit from the Parser interface so that they can be treated similarly where possible.

How the command works:

• When the Parser returns a Command object, it runs Command.execute(), which is a method to execute the command and return the intended result. This method returns a CommandResult, which is an object that takes in String and CarparkList and returns what the user will be seeing on the terminal.
• Each command will have its own class ABCCommand (ABC is a placeholder for the specific command name e.g. FindCommand) as an extension of the Command class.
• All ABCCommand classes will have an override execute() method, which will override the execute method in Command and return the respective CommandResult result of the Command.

2.7 Common Component

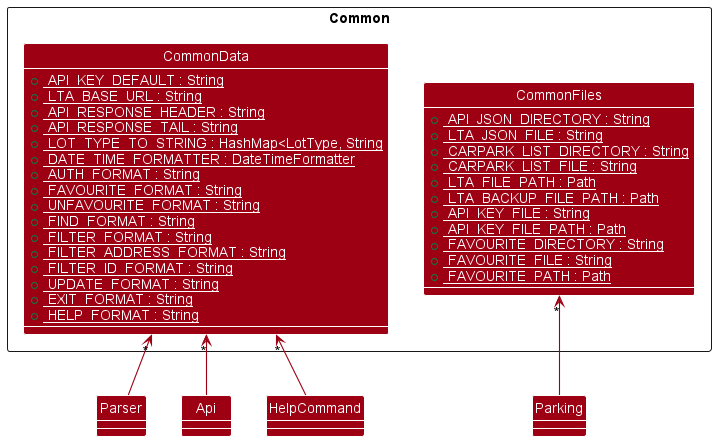

The Common component contain two auxiliary classes that just contain information that may be shared between or accessed by multiple other components. Both CommonData and CommonFiles are abstract and cannot be instantiated, and all fields within are static and final.

CommonFiles contains information regarding files - file and directory paths.

CommonData contains assorted information that is packed together for easy access. These fields are ones that may be likely to need to be modified. Some examples are strings showing the correct format for using commands, used between command classes whenever an invalid input is entered, and the strings containing URLs for the API.

3 Implementation

This section describes some noteworthy details on how certain features are implemented.

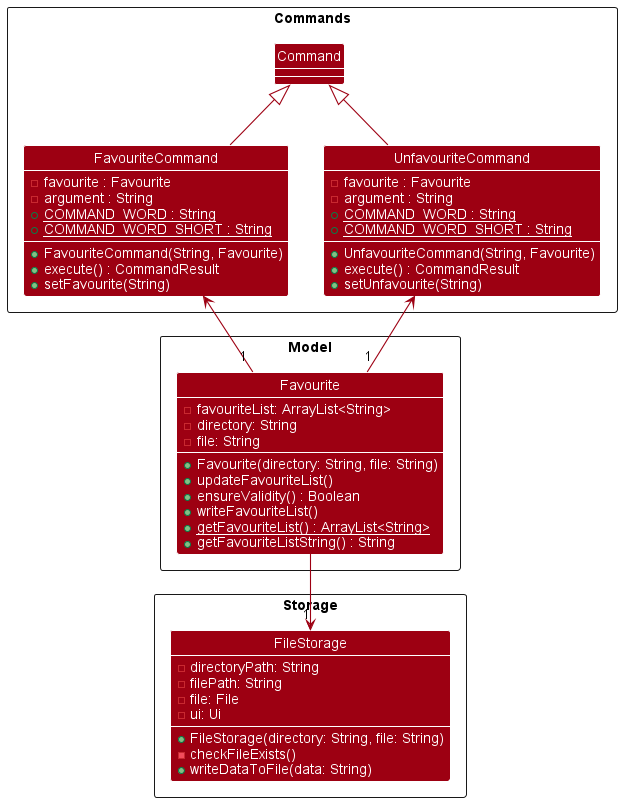

3.1 The favourite and unfavourite command

The Favourite class uses the FileReader and FileStorage classes to read and write carpark IDs to a favourite.txt file so that user-favourited carparks can be saved locally and retrieved even after the user exits the application.

It contains the following attributes:

• favouriteList - An ArrayList of favourited carpark IDs.
• fileStorage - A FileStorage object that helps to write to favourite.txt.
• directory - A String that contains the directory of favourite.txt.
• file - A String that contains the name of the file, in this case favourite.txt.

It implements the following operations:

• updateFavouriteList() - Reads in data from favourite.txt file and saves it to this object.
• ensureValidity() - Checks if all carpark IDs inside an ArrayList are valid carparks in a CarparkList.
• writeFavouriteList() - Writes all favourite carpark IDs to favourite.txt file.
• getFavouriteList() - Static method that returns an ArrayList of favourited carpark IDs.
• getFavouriteListString() - Returns a string of all favourited carpark IDs and their lot availability.

The favourite feature is implemented using the FavouriteCommand class.

It uses the Favourite class to update and write to favouriteList.

It implements the following operations:

• execute() - Main method to execute different favourite methods based on user input.
• setFavourite() - Inserts a carpark into the favourite list.

The unfavourite feature is implemented using the UnfavouriteCommand class.

It uses the Favourite class to update and remove favourited carparks from favouriteList.

It implements the following operations:

• execute() - Main method to execute different unfavourite methods based on user input.
• setUnfavourite() - Removes a carpark from the favourite list.

Given below is an example of how the various classes are used to perform favourite / unfavourite operations:

Step 1. On startup, Favourite is initialised. The main programs calls loadFavourite() which then calls updateFavouriteList() and writeFavouriteList() shortly after to populate and validate its ArrayList with the carpark IDs in the file.

Step 2. The user executes favourite 1 to favourite the carpark with carpark ID 1. The command is passed to the Parser class which returns a FavouriteCommand object to the main program. The main program then calls executeCommand() which calls execute() from the FavouriteCommand class. It first checks if the second argument in the command is equal to list. Since this is false, execute() checks if there exists a carpark with carpark ID 1 by calling isCarparkValid() from the CarparkList class. If the carpark ID is valid, information about the carpark is retrieved from the findCarpark() method and setFavourite() is then called to add the valid carpark ID into favouriteList, which searches favouriteList for any identical carpark IDs and throws DuplicateCarparkException if found, to prevent addition of duplicates. 1 is then added into favouriteList and setFavourite() calls writeFavouriteList() which overwrites data from favouriteList to favourite.txt.

Note: If any exception is thrown, 1 will not be added into favouriteList, and writeFavouriteList() will not be called, hence preserving the validity of the carpark IDs.

Step 3. The user executes favourite 2 3 4 to favourite the carparks with carpark ID 2, 3 and 4. Execution is similar to Step 2, except now execute() will repeat the execution for each additional carpark ID provided, skipping over the invalid carpark IDs.

Step 4. The user realises he/she made a mistake and wants to unfavourite the carpark with carpark ID 2, and executes unfavourite 2. The command is passed to the Parser class which returns a UnfavouriteCommand object. The main program calls executeCommand() which calls execute() from the UnfavouriteCommand class. execute() checks if there exists a carpark with carpark ID 2 by calling isCarparkValid() from theCarparkList class. If the carpark ID is valid, setUnfavourite() is called, which first checks if favouriteList contains an entry that matches 2, and throws NoCarparkFoundException if none is found. Next, 2 is removed from favouriteList and setUnfavourite() calls writeFavouriteList() which overwrites data from favouriteList to favourite.txt.

Step 5. The user wants to view all favourited carparks and executes favourite list. The command is passed to the Parser class which returns a FavouriteCommand object. The main program calls executeCommand() which calls execute() from the FavouriteCommand class. After checking if the second argument is equal to list, updateFavouriteList() and writeFavouriteList() are called to get and validate the most updated favourited carpark IDs before getFavouriteListString() is called. The carpark IDs and lot availability of all favourited carparks are then passed back to the main program in a CommandResult class.

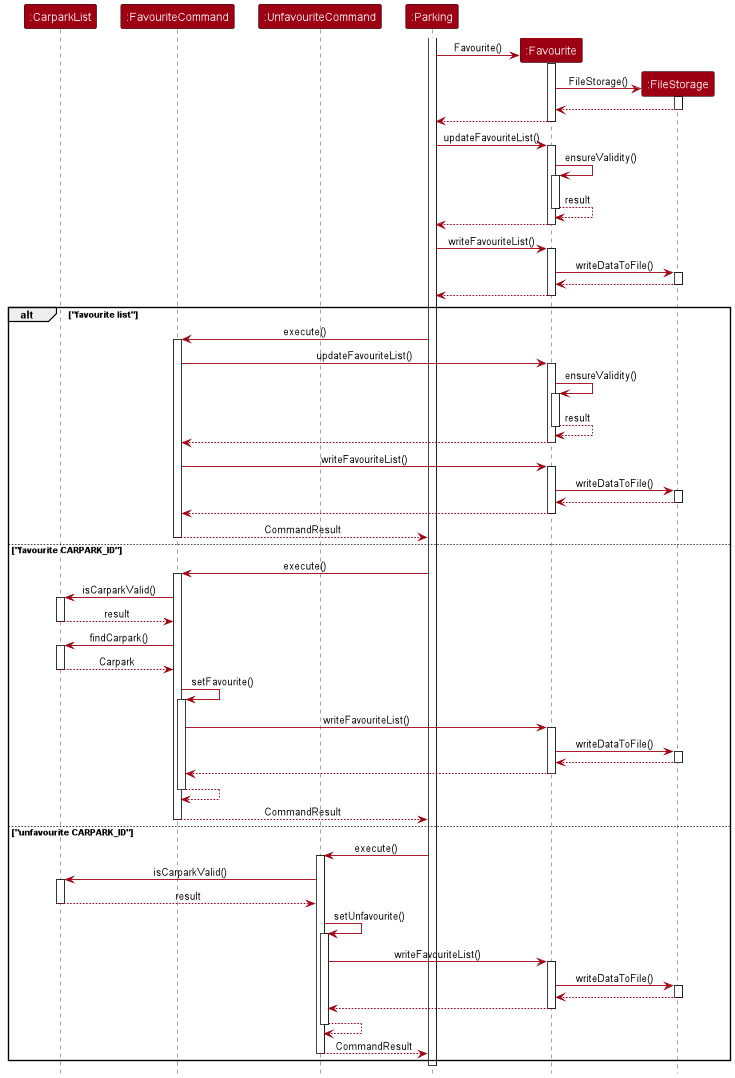

The following sequence diagram shows how a favourite / unfavourite command works:

3.1.1 Design Considerations

Aspect: Format of input after favourite or unfavourite command

• Alternative 1 (current choice): Carpark ID
  • Pros: More direct, do not need to filter before favouriting
  • Cons: User has to either memorise the carpark ID they want to favourite, or filter and type in the whole carparkID
• Alternative 2: Index after a filter result
  • Pros: Less time needed to favourite after a filter result, do not need to key in entire carpark ID again
  • Cons: Need to filter before favouriting, even if user already knows the exact carpark ID

3.2 The filter command

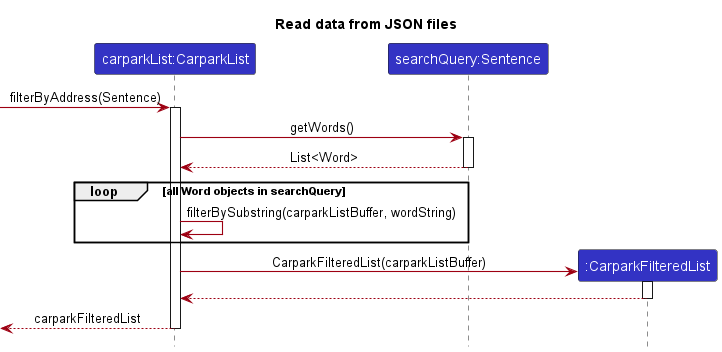

The filter command is one of the more complicated functions of the program. The sequence diagram above shows the sequence of events when the filterByAddress() method inside of carparkList is called.

The private filterBySubstring() method assigns a HashSet<Carpark> object carparkListBuffer, all carparks with development sentences that match the substring. At the same time, the Word object inside that Carpark object’s developmentSentence that matches the substring is marked as bold, for use with the Jansi formatting later on, where words that match the query are marked with a different colour for easy viewing.

The Argument class that the filter command uses for error checking is an extension of the Sentence class with additional methods to count dashed arguments. This is to ensure that the appropriate number of arguments and dashed arguments are in the command.

Note: Only prefixing substrings (substrings in the beginning of the word) will be counted as a match in address mode. For ID mode, any substrings or full matches will be included in the results of the command.

3.2.1 Design Considerations

The filter command can take in 1 or more arguments, which is then parsed into a Sentence object as query. This allows for more flexibility on the users’ end, allowing them to narrow down their search.

There is a discrepancy between how filter is implemented depending on whether the command is in address or ID mode, using the dashed argument -id and -address, or if no dashed argument is present (defaults to address mode).

In address mode, for a carpark to be included in the carparkFilteredList, it must match all possible Words in the search query as substrings. For example, CLEMENTI AVE 3 can be matched with the user command filter clem ave 3, but not filter clem ave 2. Additionally, substrings must be prefixing - found at the beginning of any word in the developmentSentence field in any Carpark object.

In id mode, any carpark’s ID only needs to match any word in the search query. Additionally, any substring at all, even in the middle of the sentence, will match. For example, an ID 11, 31 and A4 will all be matched with the user command filter -id 1 4.

This discrepancy is due to the fact that a carpark ID is necessarily only ever one word - so it makes no sense to restrict carparks further by making it match all words. Additionally, for additional flexibility,filter -id QUERY also matches not only prefixing substrings but any substring at all.

If users want a more restrictive filter, they most likely already know what the carpark ID is and should then just use the find command.

3.3 Updating Data from LTA API

Before going deep into how the data is fetched from the LTA API, we will run through how the Api component of data fetching works.

1. The initialisation of the class will make an instance of the Storage, HttpClient and Ui class.
2. If the program just started, the Parking class will call the loadApiKey() method.
   • If no file called secret.txt is found, file will be created.
   • If the file is empty, the default key will be loaded to the Api instance (but not written to the local file).
3. To get a certain data set from the API Service,
   • Call asyncExecuteRequest() method to construct the HTTP request packet header and send the request asynchronously.
   • Call fetchData() method to get response immediately from the API.
     • This method will also validate the response from the API by identifying the response code.
     • Unless the code is 401 Unauthorised Access (due to invalid API key), the method will try to fetch data at most 5 times.

Since each API call only returns 500 entries per fetch, we need to make multiple API calls. Thus, there is another method that handles the API calls all at once. The process is still similar.

1. Same step 1 and 2 above.
2. Call syncFetchData() method, which calls both the asyncExecuteRequest() and fetchData() five times (LTA has less than 2500 Parking lot data)
   • This method makes all 5 requests asynchronously and receives the response in sequence.
   • The method will concatenate the data together.
   • The processed data will then be stored in a local data file for processing by the Storage component.

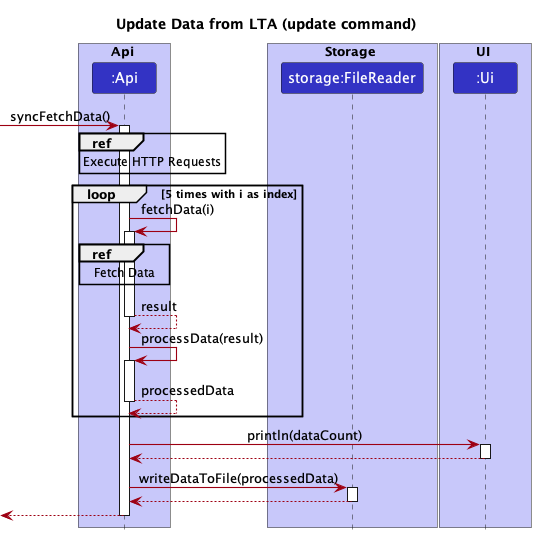

The following sequence diagram shows how data is fetched using the update command.

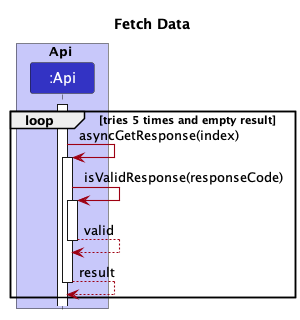

These are the reference sequence diagrams to supplement the above diagram.

3.3.1 Design Considerations

Asynchronous request

We chose the LTA API service to provide us with the carpark availability due to it having access to multiple agency’s databases. Thus, by using only one API we can get the most number of entries available. Government API services usually utilise pagination (in this case the skip parameter), such that each query only gives a maximum of 500 entries at one time. As a result, multiple calls are needed to capture the complete database that the API service can offer.

Thus, we utilise asynchronous calls to make all the HTTP requests first, and then fetch the response one by one. This means that the responses coming into our program will not be bottlenecked and will be faster than if we were to use a synchronous request.

After receiving all data from the responses, we need to concatenate them into one file such that the parser only needs to read from one file. This is done to minimise the possibility of read failure or exceptions being thrown.

Synchronous request capability

Although we are focusing more on the asynchronous part, the program right now also supports synchronous calls for future development such as updating a specific value instead of the whole data. By calling the asyncExecuteRequest() and fetchData() methods we can simulate synchronous HTTP requests.

3.3.2 Limitations of the LTA API

Inconsistent dataset received

During the course of our development, we found out that sometimes the responses we receive will not be the full set of 500 entries per call. This led to some confusion at first but the behaviour seems random and definitely not caused by our program. Thus, we have to do multiple checks such as checking whether any data is being sent over (even if the response code is 200 OK) and tabulate the number of carparks that exist in the response.

Dataset does not adhere to LTA’s documentation

Coming to the end of our development where we placed more emphasis on unit testing, we found out that LTA occasionally gives us invalid data. For example, in the documentation, only 3 types of carpark lot type exists: C (Car), H (Heavy Vehicles) and Y (Motorcycle). However, upon further inspection we found out that other types also existed: M and L.

Another problem we found is that LTA does not do its own data validation. Thus, we found some carparks having a negative number of available lots. This is a big problem as from the user’s perspective it may be seen that our program is at fault.

Due to such bug discoveries, we made our CarparkList parser much more robust, and it now does data validation internally to ensure no such data is presented to the user.

3.4 Updating CarparkList with JSON file from API

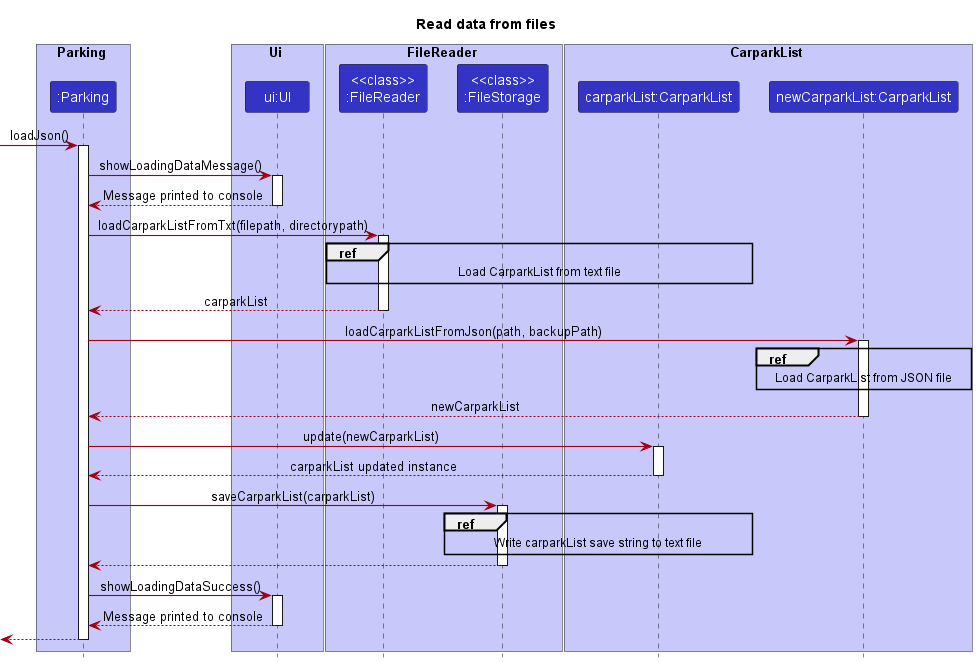

The following is an overview of the sequence of what is called at initialization and with the use of the update command:

The sequence can be summarized as follows:

1. Read and parse a .txt file containing save information into carparkList as a CarparkList object.
2. Read and parse a JSON file containing new availability information into newCarparkList, also a CarparkList object.
3. Update carparkList with new availability information from newCarparkList.
4. Write the save string generated from carparkList into a .txt file.

NOTE: For ease of viewing the list of carparks inside the carparkList will be sorted upon generation by carpark ID.

More detailed information including exception handling will be in the sections below:

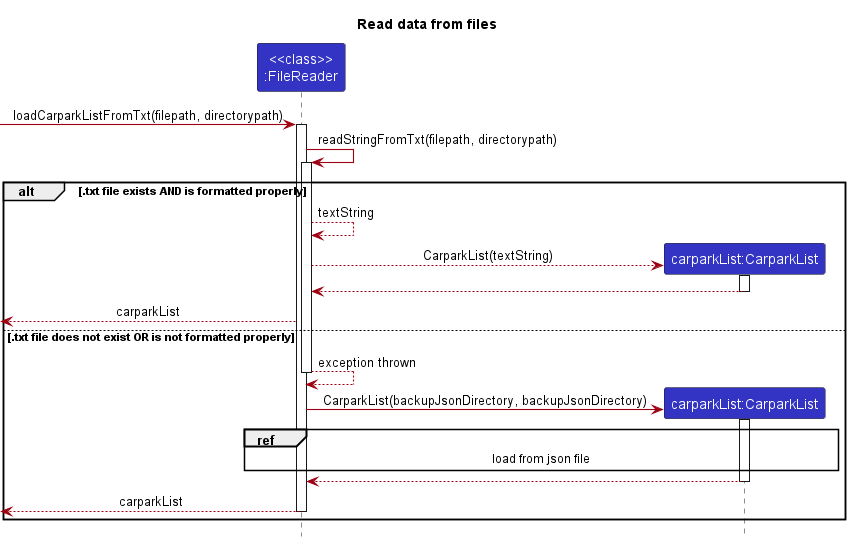

3.4.1 Loading CarparkList from text file

The program will attempt to read from a .txt file. This .txt file contains a save string of the CarparkList as last modified by the program. Additionally, the user can customise this by changing some fields (for example, renaming a carpark to “Near my house” for convenient viewing later), which will be loaded and stored by the program.

The sequence of events is as follows:

1. The program attempts to read a save string from the given filepath (of the carparkList.txt file).
2. If the text file exists and is of a valid format, the text string is returned to the method, which is then parsed into a valid CarparkList object, and then returned to the program.
3. If the text file doesn’t exist or has an invalid format, the text string is not written, and the loadJson() method is called instead to regenerate from a backup. This backup is guaranteed to be valid, as explained in 3.4.2 Loading CarparkList from JSON file

Design Considerations

1. Choice of “last resort” backup loading

The reason for reading from the backup JSON as a last resort is so that no loss of information is found: the LTA API on occasion will only return 500 or a variable number of carparks. If the last resort is to parse the fresh JSON from the LTA API into program, and the new CarparkList only has 500 objects, some objects in the Favourites list may become invalid, and more than that, a large portion of carpark information will not be available at all.

As such, we elected to use the backup JSON as a base as a verifiable comprehensive sampling of carparks, so no information will be invalid and users can still use filter and search for these carparks that might be unable if the freshly fetched API was used. To allow users to work around this, we have a “Last Updated” field in the detail view to allow users to see if the carpark has been just updated or was not updated by the API call.

2. Invalid format behaviour

Invalid formatting may result when users tamper with the file by adding or removing delimiters (||), or entering data that will result in an improperly formatted CarparkList object. For example, changing the carparkId field for a carpark such that two carparks clash will result in the find command not working properly as the HashMap will not be able to take duplicate values.

It was decided for the same reason above that rather than just ignoring single rows and using new ones, any invalid formatting at all will cause the entire text string to be ignored (and overwritten later). This is because a user causing a single row to be invalid may cause that row to be skipped, and if the Favourites list includes that particular row, it may cause a mismatch in expected information between the user and the program.

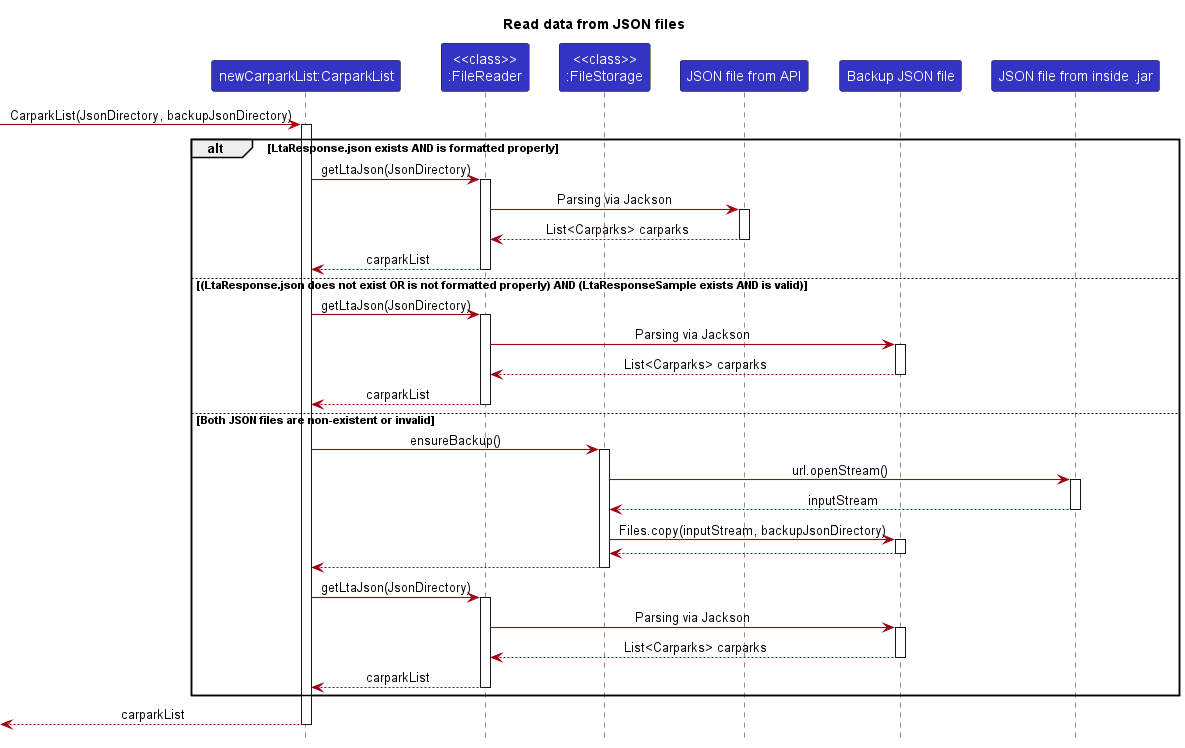

3.4.2 Loading CarparkList from JSON file

The sequence of events from loading from a JSON file is as follows:

1. The program attempts to read a JSON from the given filepath for LtaResponse.json.
2. If the LtaResponse.json file exists and is of a valid format, it is read by the Jackson parser, creating Carpark objects, which will then be returned to the program.
3. If the LtaResponse.json doesn’t exist or has an invalid format, LtaResponseSample.json is read instead: a backup file to be used if there is no internet connection or an error with the LTA file.
4. If both the LtaResponse.json and LtaResponseSample.json file come with errors, the LtaResponseSample.json is regenerated by copying from within the .jar file. It is then read again, and the CarparkList object is returned.

Invalid format behaviour

In the UG, users are warned not to tamper with these two files as it may result in regeneration of the files due to invalid format. As with the carparkList.txt file, any errors at all will cause the entire file to be ignored and the backup to be used instead. The backup LtaResponseSample.json should not be tampered with either, but if it is, it will always be regenerated from the .jar, which should never fail.

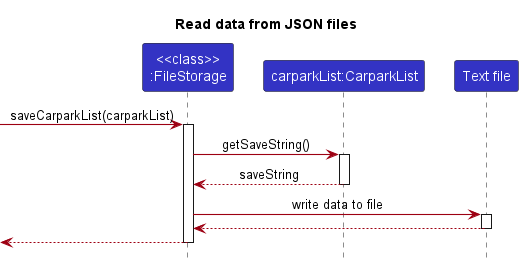

3.4.3 Writing to text file

The sequence of events for writing to a text file is as follows:

1. The program calls the getSaveString() method inside the carparkList passed in as a parameter.
2. This save string is written to the text file.

If the file cannot be found or the appropriate directories are missing, the file structure and new text file will be regenerated and then written to.

3.5 Jansi formatting

The Ui class makes use of the jansi.render() method to render strings that were formatted earlier with codes to mark which text should be coloured.

The Jansi library does not work within the IDE (tested in IntelliJ), but works with consoles in Mac, Linux and Windows 10 and above. If the console environment is currently not supported, jansi.render() strips all formatting and returns just the plain text, resulting in clean but uncoloured text.

Future plans will support more extensive colouring of the UI.

3.6 Exception Handling

All custom exceptions within the program inherit from the abstract ParkingException class. The majority of custom exceptions have a built-in message in the class itself rather than loading a message in via a constructor. This is to encourage specific exceptions that should only have a message for one problem, and to prevent rewriting the same error message if the Exception is thrown in multiple files. In some cases, this string requires a String.format() method call to format properly - for example, with the InvalidCommandException.

Exceptions are generally handled by using the Ui.printError() method which takes one parameter of type ParkingException. This method will print the string by calling getMessage() in the exception and formatting it red so the user can recognise it is an error easily.

Some special cases that don’t follow the format of having the text string inside the exception itself is InvalidFormatException and NoFileFoundException. These exceptions, while being a specific problem, are wide enough in scope for messages to vary wildly depending on the nature of the file exception or the invalid format.

Appendix

Appendix A: Product scope

Target user profile

The target user that we have in mind is a driver who needs to find an available parking lot and wants to easily find carpark information, so he knows where he can park. We want to make the data from LTA easier to fetch and read for users who are able to use a CLI. This would be a more efficient way for Singaporean drivers to be able to obtain information regarding their desired carpark and also for them to be able to filter out carparks based on their addresses. Most importantly, it does not require any internet connection to use if users want to search carpark information (based on what was last updated).

Value proposition

parKING is a desktop app that helps Singaporean drivers find and filter out carpark information easily, and is optimized for use via a Command Line Interface (CLI).

Appendix B: User Stories

Version	As a …	I want to …	So that I can …
v1.0	Driver	Search lot availability by a unique carpark ID for a specific carpark	Know where I can park
v1.0	User with no internet	Access a list of available carparks on the app offline	Estimate where I can park based on last updated information offline
v2.0	Driver	Be able to save favourites	Monitor carparks important to me
v2.0	Driver	Import my favourite carparks	Use my saved settings/preferences across different devices
v2.0	Driver	Filter the carparks based on their address	Search for carparks without knowing the carpark ID
v2.1	Driver	Search for carparks based on carpark ID	Search for carparks without knowing the carpark address
v2.1	Driver	Have my carpark information be colour coordinated	Look at carpark information with ease

Appendix C: Non-Functional Requirements

• Program must be able to run on Linux, Windows and Mac platforms.
• Program must not print any API key to console for security purposes.
• Program must not keep users waiting after any command for more than 5 seconds (including fetching API information).
• Commands must be user-friendly and well-documented in the User Guide.
• Program must not crash under any circumstance.
• Enhancements to the program should be easy to implement.
• Program is not required to have any GPS capabilities.

Appendix D: Glossary

• LTA - Land Transport Authority

Appendix E: Instructions for manual testing

The following command(s) do not take any arguments:

• list
• help
• exit
• update

Providing arguments will result in an error message, for example:

Input:

help arg1

Output:

There were unrecognized arguments after the `help` command. Please try the
`help` command again by itself.

The following command(s) take only 1 argument:

• find
• auth

Providing no arguments will result in an error message, for example:

Input:

find

Output:

Empty argument. Valid command(s):
`find CARPARK_ID` or `fin CARPARK_ID` 	: Display information about the
specific queried carpark based on carpark ID.

Providing too many arguments will result in an error message, for example:

Input:

auth arg1 arg2

Output:

This command only takes exactly 1 argument(s). Valid command(s):
`auth API_KEY` or `a API_KEY` 	: To authenticate your personal API key.
`auth default` or `a default` 	: To authenticate using the default key
provided by parKING.
`auth status` or `a status` 	: To get the authentication status.

The following command(s) take in more than 1 argument:

• filter
• filter -id
• filter -address
• unfavourite
• favourite (excluding favourite list)

Providing no arguments will result in an error message, for example:

Input:

filter

Output:

Empty argument. Valid command(s):
`filter QUERY` or `fil QUERY`	: Filter carparks based on Carpark information.

The following command does not take in any additional arguments:

• favourite list

Providing extra arguments will result in an error message, for example:

Input:

favourite list arg1

Output:

This command with the `list` argument cannot take any additional
arguments. Valid commands(s):
`favourite list` or `fav list` 	: To get the list of favourited carparks.
`favourite CARPARK_ID` or `fav CARPARK_ID` 	: Favourite carpark by its ID.

Users can test both Favourite.txt and CarparkList.txt to modify the data being passed to the program.

Refer to the User Guide for accurate information regarding the valid and invalid inputs. Users can try giving carpark IDs or addresses that do not exist.
